Well water and rainwater harvesting. A text the moment pH drifts or TDS spikes, before it reaches the tap.
Raspberry Pi HAT · Open Firmware
Anytime. Anywhere.
Know your water.
Six sensor channels, LoRaWAN telemetry, and an on-board relay — continuous readings from any tank, pond, or treatment system, shipped from Austin.
TANK-01
Mon, Jul 27 · 11:43 PM
LAST SYNC 3M AGO · 3 DEVICES ONLINE · 1 ALERT
pH7.2stable
Turbidity4.2 NTUrising 4%
ORP+210 mVnominal
DO6.8 mg/Lholding
Temp19.4 °Csteady
Turbidity rising 4% — watching through noon
NOTE
“Pond turned over near 04:00. DO sagged 8 min, aerator caught it. Watching turbidity through noon.”

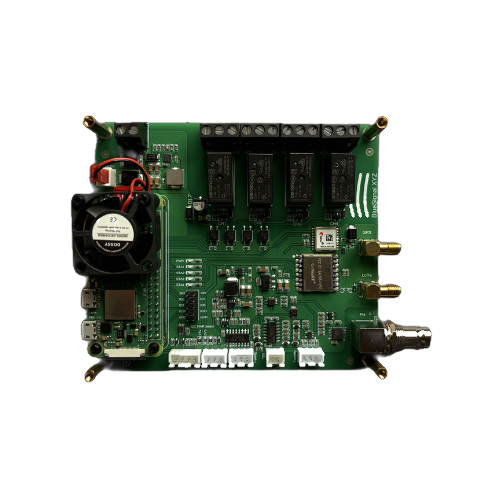

The Device
One board. Six probes.
A Raspberry Pi HAT that reads six channels of water chemistry, holds them in an on-board buffer when the link drops, and ships them out over LoRa. When a reading crosses a line you set, the same board trips a relay — a pump, a valve, an aerator. Hover or focus any pin to see what it is.Tap any badge to see what it is.
What It Watches
Six channels. Plus a digital bus.
Six core parameters read every 60 seconds — and an RS485 expansion bus for digital probes like chlorine and EC/salinity. Here’s what each one tells you.
A0 · BNC
pH
Acid or base — drifts before the fish do.
A1 · BNC
TDS
Dissolved salts, climbing or holding steady.
A2 · Analog
Turbidity
Cloudiness — the first sign of a bloom.
A3 · BNC
ORP
Whether your disinfection is working.
GPIO · 1-Wire
Temperature
The reference everything else leans on.
UART · NMEA
GPS
Geo-stamps every batch of readings.
RS485 · Modbus digital bus · optional probes
RS485 · Modbus
Chlorine
Residual disinfectant, 0–20 mg/L — optional digital probe.
RS485 · Modbus
EC / Salinity
Conductivity and salt content — optional 5-in-1 digital probe.
System Overview
One system. Any water.
From probe to dashboard: the WQM-1 reads, buffers, and transmits to BlueSignal Cloud; thresholds fire alerts and the relay closes the loop. Swipe through where it runs — the same readings power the WaterQuality.Trading network.
Ponds & Spas
Ponds, Pools & Spas
Chlorine and pH watched around the clock — pools, spas, koi ponds, and display tanks. The relay drives the doser; the dashboard texts you before anyone notices.
AWG
Atmospheric Water Generation
Condensate quality checked before it ever reaches the tank — pH, TDS, and chlorine on every batch the machine pulls from the air.
Also deployed for — commercial
Nutrient Banking
Treatment-cell readings that mint credits on WaterQuality.Trading.
Stormwater
Retention-basin monitoring, GPS-tagged for MS4 compliance.
Algae Control
Turbidity and ORP trends caught days before a bloom shows.
Aquaculture
Dissolved-oxygen alarms wired to the aerator before dawn.
Storage
Offline-First SQLite Buffer
WAL-mode database holds readings locally when the link drops. Syncs automatically once the LoRa link returns.
Radio
LoRaWAN Class A
SX1262 transceiver, 15 km line-of-sight. Cayenne LPP payloads, AES-128 encrypted.
Control
Relay Output
10 A relay for pumps, valves, and dosing systems. Fires on a threshold rule or a cloud command.
Expansion
I²C Expansion Bus
Exposed I²C header for more probes — barometric pressure, dissolved oxygen, or custom sensors.
Every connector, voltage, protocol, and tolerance is on the datasheet — compute, radio, power, and I/O in full.
Read the full datasheetPricing
Hardware and monitoring pricing.
Every site runs the same WQM-1 hardware — we handle the install. Cloud monitoring scales with how you use it.
Hobbyist
Freecloud · one device
+ $99 site survey, install quoted per site
- Live cloud dashboard
- Email alerts
- Open firmware, self-host ready
Best forMakers, students, and tinkerers running a single sensor.
Book a Site SurveyResidential
$5/ mo per device
+ $99 site survey, install quoted per site
- Everything in Hobbyist
- Up to 5 devices
- SMS + email alerts
Best forHomeowners — wells, rainwater, a tank or two.
Book a Site SurveyRecommended
Commercial
$10/ mo per device
+ $99 site survey, install quoted per site
- Multi-site dashboard
- SMS alerts + relay automation
- Priority support & calibration
Best forAquaculture, municipal stormwater, treatment, integrators.
Book a Site SurveyRunning 50+ devices, a regulated program, or need a white-label dashboard? Talk to us.
Installation
Now across the Gulf of America.
One visit covers it: site survey, mounting, probe calibration, LoRa gateway, and dashboard config. The installer network runs out of Austin and covers five states across the Gulf of America.
